Problems

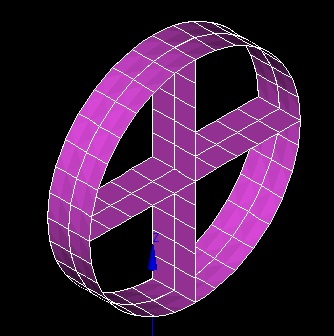

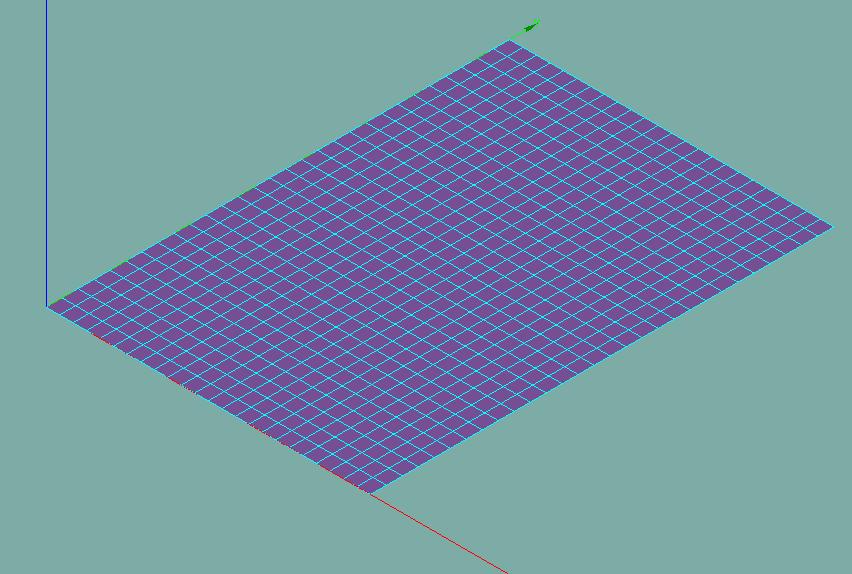

1. How to rotate the magenta object 360 degrees.

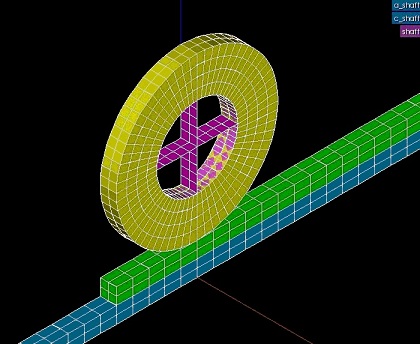

2. How to connect the magenta and the yellow.

3. How to add rigid bars(spokes) to the yellow.

---

1.[Download Mesh]

DEBUT();
MA1=LIRE_MAILLAGE(UNITE=20,
                 FORMAT='MED',);
MA2=CREA_MAILLAGE(MAILLAGE=MA1,
                 MODI_MAILLE=_F(TOUT='OUI',
                                OPTION='QUAD8_9',),);
MA3=CREA_MAILLAGE(MAILLAGE=MA2,
                 CREA_POI1=_F(NOM_GROUP_MA='poi1',
                              GROUP_NO='a_shaft',),);
MO=AFFE_MODELE(MAILLAGE=MA3,
              AFFE=(_F(GROUP_MA='shaft',
                       PHENOMENE='MECANIQUE',
                       MODELISATION='COQUE_3D',),
                    _F(GROUP_MA='poi1',
                       PHENOMENE='MECANIQUE',
                       MODELISATION='DIS_TR',),),);
CARA_ELE=AFFE_CARA_ELEM(MODELE=MO,
                       COQUE=_F(GROUP_MA='shaft',
                                EPAIS=1.0,),
                       DISCRET=_F(REPERE='GLOBAL',
                                  CARA='K_TR_D_N',
                                  GROUP_MA='poi1',
                                  VALE=(1,1,1,1,1,1,),),);
STEEL=DEFI_MATERIAU(ELAS=_F(E=200000.0,
                           NU=.3,
                           RHO=7.8e-9,),);
MAT1=AFFE_MATERIAU(MAILLAGE=MA3,
                  AFFE=_F(TOUT='OUI',
                          MATER=STEEL,),);
MECA=AFFE_CHAR_MECA(MODELE=MO,
                   DDL_IMPO=_F(GROUP_MA='poi1',
                               DX=0.0,
                               DY=0.0,
                               DZ=0.0,
                               DRX=6.28,
                               DRY=0.0,
                               DRZ=0.0,),
                   LIAISON_SOLIDE=_F(GROUP_MA=('ax_shaft','poi1',),),);
L_INST=DEFI_LIST_REEL(DEBUT=0.0,
                     INTERVALLE=_F(JUSQU_A=1.0,
                                   NOMBRE=10,),);
inst=DEFI_LIST_INST(DEFI_LIST=_F(METHODE='AUTO',
                                LIST_INST=L_INST,
                                PAS_MINI=1e-8,),);
RAMP=DEFI_FONCTION(NOM_PARA='INST',VALE=(0.0,0.0,
                        1.0,1.0,
                        ),);
STA=STAT_NON_LINE(MODELE=MO,
                 CHAM_MATER=MAT1,
                 CARA_ELEM=CARA_ELE,
                 EXCIT=_F(CHARGE=MECA,
                          FONC_MULT=RAMP,),
                 COMP_INCR=_F(RELATION='ELAS',
                              DEFORMATION='GROT_GDEP',),
                 INCREMENT=_F(LIST_INST=inst,),
                 NEWTON=_F(PREDICTION='ELASTIQUE',
                           MATRICE='TANGENTE',
                           REAC_ITER=1,),
                 SOLVEUR=_F(METHODE='MULT_FRONT',
                            STOP_SINGULIER='NON',),);
STA=CALC_ELEM(reuse =STA,
             MODELE=MO,
             CHAM_MATER=MAT1,
             RESULTAT=STA,
             OPTION='EQUI_ELNO_SIGM',);
IMPR_RESU(FORMAT='MED',
         UNITE=70,
         RESU=_F(MAILLAGE=MA3,
                 RESULTAT=STA,
                 TOUT_CHAM='OUI',),);
FIN();
