Doing an automated study with Salome and CodeAster

This example may seem a little artificial. However this was part of my work this summer for a research partner of my university. I am not allowed to place the original problem here because conflicts with the companies secrets would be inevitable. So I have to construct a new problem around the expertise I gained from my task. Even if you do not have a similar task you may learn something.


If there is the need to analyze lots of topological likewise geometries then automation can make life easier. This paragraph describes automatable analysis of a 2D part section. Given the case the geometry comes as list of vertices in a known order we can read this list with a script and create a TUI script.

The input data

The input data for the analysis is stored in a text file containing information about the geometry and the load. The geometry, a 2D part section, is given by a list of vertices. The point where the concentrated load acts on the structure is also given. Distributed load in 3D results in concentrated load in the 2D section. The text file may come from a CAD program. At least in my work this was the case.

# data for part sect01

name = 'sect01'

case1.fx = 120.0;
case1.fy = 21.5;

case2.fx = -54.0;
case2.fy = 97.2;

vrtcs = [
12.0 100.0
... ...
... ...

Processing the input data

We process the data file with a python script. This script generated the TUI script which will be processed by Salome. We could also directly import the geometry in the TUI script via exchange file format but then we would not know where to apply the load and where to constrain the degrees of freedom. At least I would not know.

Running the TUI script

Salome will be started in terminal mode and the TUI script will be directly imported by command line option. As this whole analysis is made by one python script, only the parts concerning Salome will be shown here. The whole script will be listed somewhere below.

p1 = Popen("source /home/gerhard/salome_5.1.2/KERNEL_5.1.2/", shell=True)
sts1 = os.waitpid(, 0)
p2 = Popen("/home/gerhard/salome_5.1.2/KERNEL_5.1.2/bin/salome/runSalome -t -u ./", shell=True)
sts2 = os.waitpid(, 0)

Popen() executes the given string as a sub-process. waitpid() ensures the sub-process is finished before the calling process continues execution.

Creating the FE study

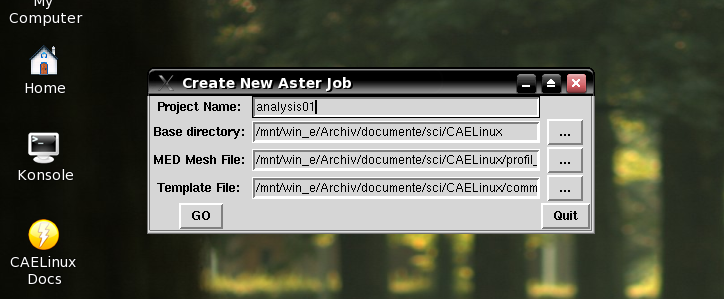

This part was taken from CAELinux. It is the core of the script that uses a GUI for the major input. Here the original script is shown in action.

View asterHelpers createFeStudy detail.png

I removed the things related to the GUI. Crude work I have to admit. This script receives the filename of the data file as argument.

   #!/usr/bin/env python
   # Create a new FE analysis job from a template
   # J.Cugnoni,, 2005
   # edited by G. Holzinger, JKU Linz, 2009
   import os
   import os.path
   import sys
   fileName = sys.argv[1]
   name = fileName[:fileName.rfind(".")]
   etude,fich,3,FR F
   opt_val,rep_dex _VIDE
   etude,fich,3,UL 8
   etude,fich,2,type mess
   etude,fich,4,donnee 0
   option,nbmaxnook 1
   etude,fich,2,resultat 1
   nom_fich_export _VIDE
   option,rep_dex 0
   etude,fich,4,compress 0
   etude oui
   debug 0
   opt_val,cpresok RESNOOK
   forlib_delete non
   etude,fich,4,serv Local
   etude,fich,3,donnee 0
   serv_fich_export -1
   surcharge,nbfic 0
   etude,fich,6,FR F
   path_etude [__prjdir__]
   option,rep_outils 0
   etude,fich,6,UL 80
   etude,fich,3,resultat 1
   option,cpresok 1
   etude,fich,5,compress 0
   etude,fich,1,FR F
   etude,fich,1,serv Local
   consult_supprimer non
   memoire 128
   etude,fich,1,UL 20
   onglet_actif etude
   asquit non
   etude,fich,2,donnee 0
   option,classe 1
   etude,fich,4,type erre
   consult_a_corriger non
   ident non
   etude,fich,4,resultat 1
   etude,fich,6,compress 0
   etude,fich,1,donnee 1
   rex non
   etude,fich,1,type libr
   etude,fich,1,nom ./[__prjname__]
   suivi_interactif 1
   path_sources _VIDE
   pre_eda non
   etude,fich,4,FR F
   forlib_create non
   etude,fich,4,UL 9
   etude,fich,3,nom ./[__prjname__].resu
   serv_tests -1
   etude,fich,6,serv Local
   etude,fich,5,nom ./[__prjname__].base
   make_etude run
   option,depart 1
   nom_profil [__astkfile__]
   args _VIDE
   etude,fich,5,resultat 1
   etude,fich,0,donnee 1
   opt_val,mem_aster _VIDE
   etude,fich,3,serv Local
   etude,fich,0,compress 0
   option,mem_aster 1
   asdeno non
   serv_surcharge -1
   serv_sources -1
   surcharge non
   etude,fich,6,type rmed
   etude,fich,0,serv Local
   M_1 oui
   serv_etude -1
   M_2 non
   etude,fich,6,resultat 1
   etude,fich,2,FR F
   opt_val,rep_outils _VIDE
   M_3 non
   etude,fich,2,UL 6
   path_surcharge _VIDE
   consult non
   M_4 non
   asno non
   etude,fich,3,type resu
   etude,fich,1,compress 0
   opt_val,ncpus 1
   emis_sans non
   serveur localhost
   opt_val,classe _VIDE
   opt_val,dbgjeveux _VIDE
   option,ncpus 1
   etude,fich,0,type comm
   opt_val,facmtps 1
   etude,fich,0,resultat 0
   opt_val,rep_mat _VIDE
   special _VIDE
   tests,nbfic 0
   temps 240
   option,dbgjeveux 0
   etude,fich,5,FR R
   etude,fich,5,serv Local
   asrest non
   batch 0
   etude,fich,5,UL 0
   etude,fich,2,compress 0
   option,facmtps 1
   serv_profil -1
   etude,fich,6,donnee 0
   etude,fich,0,FR F
   option,rep_mat 0
   etude,fich,0,UL 1
   etude,fich,2,serv Local
   etude,fich,0,nom ./[__prjname__].comm
   asverif non
   etude,fich,2,nom ./[__prjname__].mess
   opt_val,depart _VIDE
   etude,fich,1,resultat 0
   sources,nbfic 0
   etude,fich,5,donnee 0
   etude,fich,4,nom ./[__prjname__].erre
   tests non
   noeud localhost
   etude,fich,5,type base
   etude,fich,3,compress 0
   emis_prof non
   etude,fich,6,nom ./[__prjname__]
   etude,nbfic 7
   agla non
   opt_val,nbmaxnook 5
   version STA8.1
   path_tests _VIDE
   nom_profil %s
   path_etude %s
   etude,fich,0,nom ./%s.comm
   etude,fich,1,nom ./
   etude,fich,2,nom ./%s.mess
   etude,fich,3,nom ./%s.resu
   etude,fich,4,nom ./%s.erre
   etude,fich,5,nom ./%s.base
   etude,fich,6,nom ./
   def validate():
       if os.path.exists(prjdir):
           print "project name already exists in base directory"
           # project directory
           # file names
           commfile=os.path.join(prjdir,prjname + ".comm")
           messfile=os.path.join(prjdir,prjname + ".mess")
           errefile=os.path.join(prjdir,prjname + ".erre")
           resufile=os.path.join(prjdir,prjname + ".resu")
           mmedfile=os.path.join(prjdir,prjname + "")
           rmedfile=os.path.join(prjdir,prjname + "")
           basefile=os.path.join(prjdir,prjname + ".base")
           astkfile=os.path.join(prjdir,prjname + ".astk")
           # copy files
           from shutil import copyfile
           # create ASTK profile
           fd.write(templateASTK % ((astkfile,prjdir,) + (prjname,)*7))
           # show message and exit
           print "New FE analysis project created successfully."
           return 0
   vars={"basedirname": os.getcwd() + "/",
         "prjname": name,
         "meshname": "mesh_" + name + ".med",
         "tplname": "command.comm"}

Create the *.export file

For this task there is also a script. This script receives the name of the study as argument. To adjust this file for your needs compare the output of this script with a *.export file from a running CodeAster study created by ASTK. Adjust everything you need to obtain equal *.export files.

   #!/usr/bin/env python
   # Create an .export-file for CodeAster
   # G. Holzinger, JKU Linz, 2009
   import sys
   import os
   user = os.getlogin()
   machine = os.uname()[1]
   workingRoot = os.getcwd()
   # read argument
   name = sys.argv[1]
   # open the file
   f = open("./" + name + "/" + name + ".export",'w')
   f.write("P profastk " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + ".astk\n")
   f.write("P serveur localhost\n")
   f.write("P noeud " + machine + "\n")
   f.write("P username " + user + "\n")
   f.write("P mclient " + machine + "\n")
   f.write("P uclient " + user + "\n")
   f.write("P version STA9.4\n")
   f.write("P lang en\n")
   f.write("P debug nodebug\n")
   f.write("P mode interactif\n")
   f.write("P ncpus 1\n")
   f.write("P mpi_nbcpu 1\n")
   f.write("P mpi_nbnoeud 1\n")
   f.write("P classe \n")
   f.write("P depart \n")
   f.write("P distrib \n")
   f.write("P timeout \n")
   f.write("P exectool \n")
   f.write("P nomjob " + name + "\n")
   f.write("P origine ASTK 1.7.1\n")
   f.write("P display " + machine + ":0.0\n")
   f.write("A args \n")
   f.write("A memjeveux 32.0\n")
   f.write("P mem_aster 100.0\n")
   f.write("A tpmax 240\n")
   f.write("P memjob 131072\n")
   f.write("P tpsjob 4\n")
   f.write("P nbmaxnook 5\n")
   f.write("P cpresok RESNOOK\n")
   f.write("P facmtps 1\n")
   f.write("P corefilesize unlimited\n")
   f.write("F comm " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + ".comm D 1\n")
   f.write("F libr " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + " D 20\n")
   f.write("F mess " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + ".mess R 6\n")
   f.write("F resu " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + ".resu R 8\n")
   f.write("F erre " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + ".erre R 9\n")
   f.write("R base " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + ".base R 0\n")
   f.write("F rmed " + user + "@" + machine + ":" + workingRoot + ("/" + name)*2 + " R 80\n")
   f.write("P consbtc oui\n")
   f.write("P soumbtc oui\n")
   f.write("P actions make_etude")
   # close the file

Run the FE study with Code Aster

Here are only the few lines related to CodeAser shown, the whole script is listed further below.

exportFullPath = os.getcwd() + ("/" + name)*2 + ".export"

p5 = Popen("/opt/SALOME-MECA-2009.1-GPL/aster/outils/as_run --run " + exportFullPath, shell=True)
sts5 = os.waitpid(, 0)

Doing the study

Here is where all the magic happens. Don't get confused with all the boxes, this source code belongs to one file. However these boxes subdividing the code into blocks may improve readability.

   #!/usr/bin/env python
   # Perform a FE analysis using Salome and CodeAster
   # G. Holzinger, JKU Linz, 2009
   # The text file containing the geometry data must reside in the same directory as this file.
   # Provide the filename as argument!
   # If the filename contains dots ('.') then the file must have a file extension (i.e. sect01.txt or sect01.v02.txt)
   # Files without file extension are also allowed (i.e. sect01)
   # Not allowed are files with filenames containing dots but without file extension (i.e. sect01.v02) for
   # everything left of the rightmost dot excluding this dot is used as projectname and is used to build
   # the file paths too. This would not work in this case!
   import os
   import sys
   from subprocess import *
   def usage():
   	print "\tusage: ./ FILENAME"
   	print ""
   	print "\texample: ./ sect01.txt"
   # retrieve number of arguments
   nargs = len(sys.argv)
   # no argument was passed
   # nargs == 1 because the filename of the file itself is automatically passed as argument
   if nargs == 1:
   	print "no arguments passed!"
   # one argument was passed
   if nargs == 2:
   	argument = sys.argv[1]
   	# remove file extension
   	index = sys.argv[1].rfind(".")
   	if index == -1:
   		name = sys.argv[1]
   		name = sys.argv[1][0:index]
   	print name
   	# initialize status variables
   	sts0 = (0, 1)
   	sts1 = (0, 1)
   	sts2 = (0, 1)
   	sts3 = (0, 1)
   	sts4 = (0, 1)
   	sts5 = (0, 1)
   	# create TUI script for salome
   	print "calling: ./ " + argument
   	p0 = Popen("./ " + argument, shell=True)
   	sts0 = os.waitpid(, 0)
   	if sts0[1] == 0:
   		# create mesh
   		p1 = Popen("source /SALOME-ROOT/salome_5.1.2/KERNEL_5.1.2/; /SALOME-ROOT/salome_5.1.2/KERNEL_5.1.2/bin/salome/runSalome -t -u ./", shell=True)
   		sts1 = os.waitpid(, 0)
   		if sts1[1] == 0:
   			# create finite element study
   			p3 = Popen("./ " + argument, shell=True)
   			sts3 = os.waitpid(, 0)
   			if sts3[1] == 0:
   				# create the export file
   				p4 = Popen("./ " + name, shell=True)
   				sts4 = os.waitpid(, 0)
   				# run the study
   				exportFullPath = os.getcwd() + ("/" + name)*2 + ".export"
   				resuFullPath = os.getcwd() + ("/" + name)*2 + ".resu"
   				p5 = Popen("/opt/SALOME-MECA-2009.1-GPL/aster/outils/as_run --run " + exportFullPath, shell=True)
   				sts5 = os.waitpid(, 0)
   				if sts5[1] == 0:
   					# show results
   					p6 = Popen("cat " + resuFullPath, shell=True)
   					sts6 = os.waitpid(, 0)
   				# end if
   			# end if
   		# end if
   	# end if
   	# print status report
   	print "return values of called scripts and programs\n\n"
   	print " " + str(sts0)
   	if sts0[1] == 0:
   		print "\tOk\n"
   		print "\tFailed\n"
   	print " " + str(sts1)
   	if sts1[1] == 0:
   		print "\tOk\n"
   		print "\tFailed\n"
   	print "runSalome: " + str(sts2)
   	if sts2[1] == 0:
   		print "\tOk\n"
   		print "\tFailed\n"
   	print " " + str(sts3)
   	if sts3[1] == 0:
   		print "\tOk\n"
   		print "\tFailed\n"
   	print " " + str(sts4)
   	if sts4[1] == 0:
   		print "\tOk\n"
   		print "\tFailed\n"
   	print "as_run: " + str(sts5)
   	if sts5[1] == 0:
   		print "\tOk\n"
   		print "\tFailed\n"
   if nargs > 2:
   	print "too many arguments passed!"

The first Block is made up of comments. The most important thing here is the first line. It tells the linux shell what to do with this script.

In the second Block several python modules are imported.

The third block defines a functions that prints the usage information. Rudimentay though.

In the fourth block the number of arguments is determined.

The next three Blocks are dedicated to three possible cases. No arguments were passed, one - which is the correct number - or too many. If the wrong number of arguments passed is wrong, then error messages will be printed.

Let us continue with the correct case. As the argument is the filename of the data file, the file extension is removed to obtain the name of the file. This name will be used later.

The status variables are tuples that contain the process id of the sub-process and its exit code. If the exit code is zero, the process ended normally. Errors will result in exit codes different to zero.

Then all the necessary tasks are done. The following task is run if the exit code of the preceding process equals zero.

The order and the tasks of the called scripts and programs

  • ./ Read the data file and create the TUI script. The TUI script is a python script that tells Salome what to do.
  • source /SALOME-ROOT/salome_5.1.2/KERNEL_5.1.2/ This script is necessary for Salome to start up. This is stated in the readme file of this Salome version. The command source runs the command in the same shell this script is executed. So environment variables set by are visible to runSalome.
  • /SALOME-ROOT/salome_5.1.2/KERNEL_5.1.2/bin/salome/runSalome -t -u ./ Run a TUI script in Salome in terminal mode.
  • ./ Create a FE study. This script was taken from the helpers directory of CAELinux.
  • ./ This script creates a *.export file. This file tells CodeAster what to do.
  • /opt/SALOME-MECA-2009.1-GPL/aster/outils/as_run --run profile Run the FE study described by the profile. The profile is the *.export file.
  • cat resuFile Display the *.resu file. Here are our results stored.

Some basic post processing tasks

I made this script using the examples from Salome. Importing this into Salome will import the * file and create plots of the Von-Mises-Stresses for each load case.

 import salome
 import visu_gui
 import SALOMEDS
 import VISU

 #%====================Stage1: Creating a new study====================%
 print "**** Stage1: Creating a new study"
 print "Creating a new study..................",
 myVisu = visu_gui.myVisu
 myViewManager = myVisu.GetViewManager()
 if myViewManager is None : print "Error"
 else : print "OK"
 #%====================Stage2: Importing MED file====================%
 print "**** Stage2: Importing MED file"
 print 'Import "*"...............',
 medFile = "/working_root/tool01/"
 myResult = myVisu.ImportFile(medFile)
 if myResult is None : print "Error"
 else : print "OK"
 print 'Creating new View3D...................',
 myView = myViewManager.Create3DView()
 if myView is None : print "Error"
 else : print "OK"
 myMeshName = 'MeshLin'
 myCellEntity = VISU.CELL
 myNodeEntity = VISU.NODE
 #%====================Stage3: Displaying scalar map====================%
 print "**** Stage3: Displaying sclar map"
 print "Creating Scalar Map 1.......",
 scalarmap1 = myVisu.ScalarMapOnField(myResult,myMeshName,myNodeEntity,'Sol1E___EQUI_NOEU_SIGM__________',1);
 if scalarmap1 is None : print "Error"
 else : print "OK"
 scalarmap1.SetSize(0.15, 0.8)
 scalarmap1.SetRange(0, 283.40904)

 print "Saving Scalar Map1........."
 savepicture = myView.SavePicture("/working_root/tool01/picture01.png")
 if savepicture is None : print "Error"
 else : print "OK"

 print "Creating Scalar Map 2.......",
 scalarmap2 = myVisu.ScalarMapOnField(myResult,myMeshName,myNodeEntity,'Sol2E___EQUI_NOEU_SIGM__________',1);
 if scalarmap2 is None : print "Error"
 else : print "OK"
 scalarmap2.SetSize(0.15, 0.8)
 scalarmap2.SetRange(0, 149.23416)

 print "Saving Scalar Map2........."
 savepicture = myView.SavePicture("/working_root/tool01/picture02.png")
 if savepicture is None : print "Error"
 else : print "OK"

 #%====================Stage4: Saving study====================%
 print "Saving Study.............."
 savestudy = visu_gui.myStudyManager.SaveAs("/work/tool01/tool01_post.hdf",salome.myStudy,False)
 if savestudy is None:
 	print "Error"
 	print "OK"

to be continued ...
